Waterproof Dome Type Splice 96F Fiber Optic Splice Closure GJS - D001

Waterproof Dome Type 12/24/48 Port Fiber Optic Splice Closure Cable

Fiber closure, also known as fiber optic splicing closures, is a device used to provide space and protection for fiber optic cables spliced together. The fiber optic closure connects and stores optical fibers safely either in the outside plant or indoor buildings. It can provide protection for the fiber joint and the fiber cables since they have excellent mechanical strength and strong out shell, which ensures the joints are not damaged by the hostile environment.

Types of Fiber Optic Closure

No matter the size, types, and configuration of your network, protecting the connectivity is what counts. According to different applications, there are various types of fiber optic closures in the market for users to choose from and help them protect their networks.

Horizontal Type Fiber Optic Closure

Horizontal type fiber closure has a flat or cylindrical outer housing to provide space and protection for fiber optic splices. It usually contains one or more fiber splice trays assembled to hold/protect optical fiber splices. The common fiber counts of per splice tray are 6, 12 and 24 fibers. So one fiber closure’s splice capacity could cover a range of 6-288Fibers Totally.

Vertical Type Fiber Optic Closure

Vertical fiber optic closure looks like a dome, thus it is also called dome fiber optic splice closure or fiber dome closure.It usually contains one or more fiber splice trays assembled to hold/protect optical fiber splices. The common fiber counts of per splice tray are 6, 12,16 and 24 fibers. So one fiber closure’s splice capacity could cover a range of 6-672 Fibers Totally.

Specification :

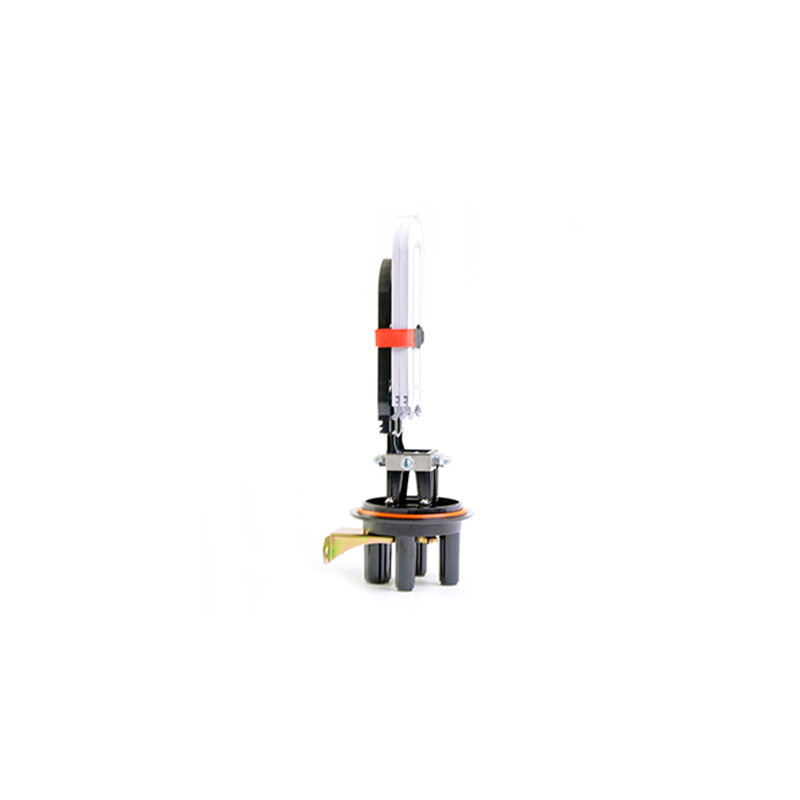

Fiber Optic Splice Closure VERTICAL TYPE: GJS-D001

Features:

Heat shrinkable sealing structure.
High quality industrial plastic body material
1 oval hole and 3 round holes for cable entrance Suitable for cable diameter 5mm-25mm
Support aerial,underground,pipeline,man holes,hand holes Protection level reaches IP68
360 degrees access, fiber bending > 40mm Maximum capacity: 96 fibers.
Number of splice trays: 4 pcs x 24F
