Waterproof Vertical Type Splice 144F Fiber Optic Splice Closure GJS - M7 - OMC

Waterproof Dome Type Splice 144 Cores Fiber Optic Splice Closure GJS - M7 - OMC

Fiber Optic Splice Closure, also known as fiber optic splicing closures, is a device used to provide space and protection for fiber optic cables spliced together. The fiber optic closure connects and stores optical fibers safely either in the outside plant or indoor buildings. It can provide protection for the fiber joint and the fiber cables since they have excellent mechanical strength and strong out shell, which ensures the joints are not damaged by the hostile environment.

Types Of Fiber Optic Splice Closure

No matter the size, types, and configuration of your network, protecting the connectivity is what counts. According to different applications, there are various types of fiber optic closures in the market for users to choose from and help them protect their networks.

Vertical Type Fiber Optic Splice Closure

Vertical fiber optic splice closure looks like a dome, thus it is also called dome fiber optic splice closure or fiber dome closure.It usually contains one or more fiber splice trays assembled to hold/protect optical fiber splices. The common fiber counts of per splice tray are 6, 12,16 and 24 fibers. So one fiber closure’s splice capacity could cover a range of 6-672 Fibers Totally.

Horizontal Type Fiber Optic Splice Closure

Horizontal type fiber closure has a flat or cylindrical outer housing to provide space and protection for fiber optic splices. It usually contains one or more fiber splice trays assembled to hold/protect optical fiber splices. The common fiber counts of per splice tray are 6, 12 and 24 fibers. So one fiber closure’s splice capacity could cover a range of 6-288Fibers Totally.

Specification :

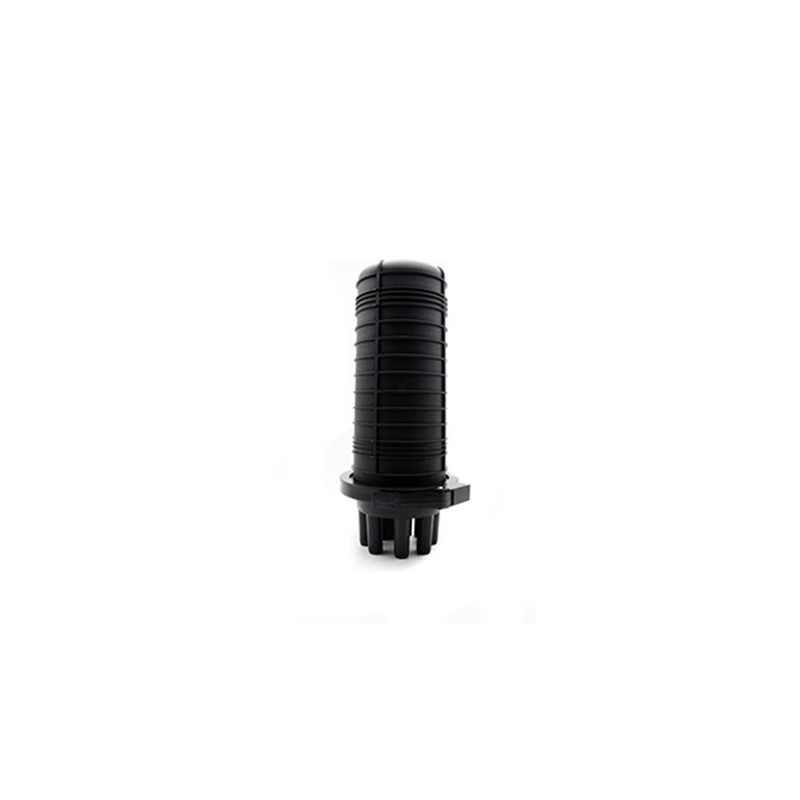

Fiber Optic Splice Closure VERTICAL TYPE: GJS - M7 - OMC

Features:

•  Heat-Shrinkable sealing structure.
•  High quality industrial plastic body material
•  1 oval hole and 6 round holes for cable entrance
•  Suitable for cable diameter 7mm-22mm
•  Support aerial,underground,pipeline,man holes,hand holes
•  Protection level reaches IP68
•  360 degrees access, fiber bending> 40mm
•  Maximum capacity: 144 fibers.
•  Number of splice trays: 12 pcs x 12F
•  Splitting: 1x16/1x32 mini PLC splitters and 18pcs/36pcsSC adaptors
